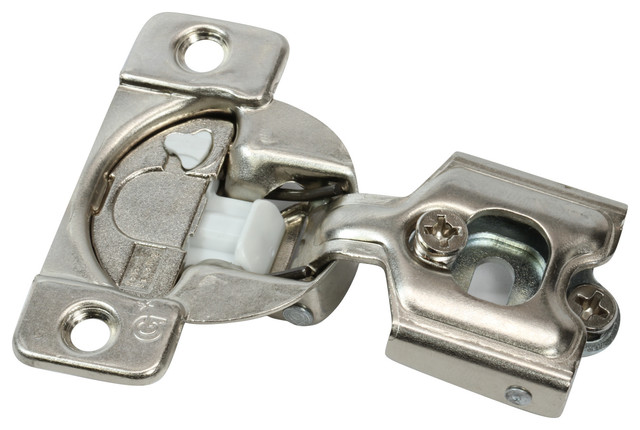

Grass Wrap Mount 108 Degree 1/2″ Overlay Screw-on Soft Close Hinge, 25 Pack

MADE IN THE USA Face Frame Hinge with integrated Soft-close No additional installation of the Soft-close is required. A three tiered adjustment switch allows various levels of resistance in the damping system. Materal: Steel, TEC hinges feature a solid metal hinge cup. All moving Mechanism parts, including pivot pins, linkages and springs Are hardened to ensure long-term durability Soft-close damper is premounted in the hinge cup Adjustment switch to regulate closing action One piece hinge and base plate combination 3 dimensional adjustment 11 mm (7/16 ) cup drilling depth Front locating tabs position hinge on face frame Works with current Grass insertion machinery Includes installation screws: 2x #6 x 5/8″ Wood Screws and 1x #10 x 3/4″ Wood Screw per hinge Side Cam Adjustment: +/-1.5mm(1/16″) Height Adjustment at mounting screw: +/-2mm(3/32″) Depth Cam Adjustment: +2.5mm(3/32″), -5mm(1/32″) Screw hole distance: 45mm (1-25/32″) Cup Boring Diameter: 35mm (1-3/8″) Hinge Overlay: 1/2″ Series: TEC 864 Cabinet Type: Face Frame Fixing Type: Screw On Closing Mechanism: Soft Closing Hinge Opening Angle: 108 Degree Base Plate: Wrap Mount
