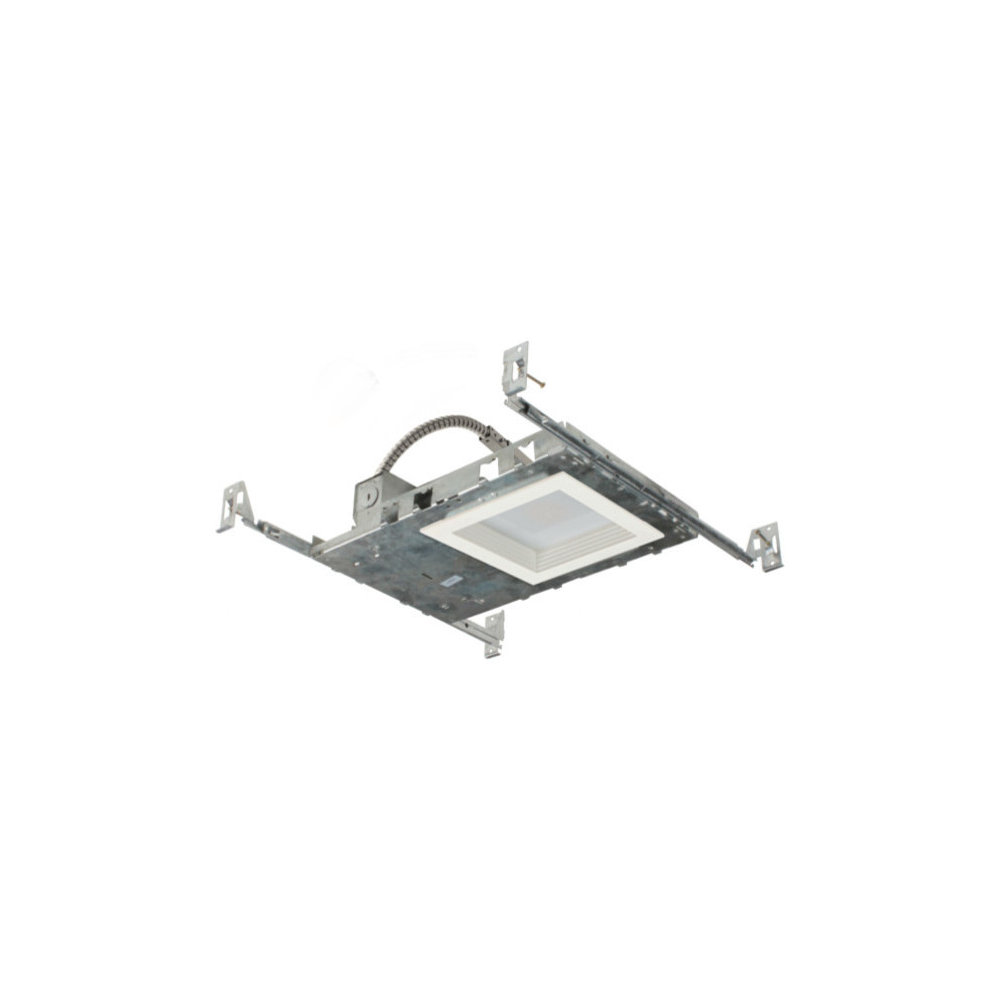

NICOR 5″ New Construction Housing, LED Retrofit and Trim Kit, Baffled White

Part of the D-Series, the DLQ5 is an architectural grade 5″ square recessed LED downlight with a sleek modern style. Everything you love about the NICOR LED Downlights is now available in an aesthetically pleasing square design with interchangeable trims. Engineered to boost energy efficiency, the LED light engine draws only 16 watts while improving light output to over 1000 lumens. This luminaire delivers true color accuracy with 90+ CRI as well as flexible dimming capabilities. The D-Series LED luminaires are a perfect choice for commercial, retail, institutional, and residential applications. The DLQ5 also meets industry standards like Title 24, Energy Star and CEC making it a great design choice. Lumens: 1100 Lumens Watts: 16.10 LPW: 68 CCT: 3,000K CRI: 90 Input Voltage: 120V Certifications: cULus Energy Star T24 Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50 Dimmable to 10% with most standard dimmers Thermally protected, high efficiency driver standard Operating temperature rating of 0?F to 120?F (-18?C ” 49?C) Input voltage of 120V L70 rated for greater than 35,000 hours LM-79, LM-80 testing performed in accordance with IESNA standards. Galvanized steel frame Interior high reflective finish Smooth White plastic trim 5-year Warranty Construction Die cast aluminum module routes heat away from electrical components Durable galvanized steel frame, with adjustable hanger bars to fit securely into most spaces Optical System Polystyrene diffuser and reflector cone create a uniform light distribution that reduces glare without sacrificing lumen output Finish Galvanized steel frame Interior high reflective finish White plastic trim (available in smooth or baffle) Frame Installation NICOR captive hanger bars allows housing to be positioned at any point within a 24″ joist span Unique hanger bar lip design helps align frame to joist Four double-headed captiv Bars can be repositioned 90″ on plaster frame without tools Score lines allow bars to be shortened without tools to accommodate a 12″ joist span Module and Trim Installation Quick and easy installation with torsion spring mounting system LED Lifetime: 46,000 Hours Input Voltage: 120V Power Draw: 16.1W
